Front Rim

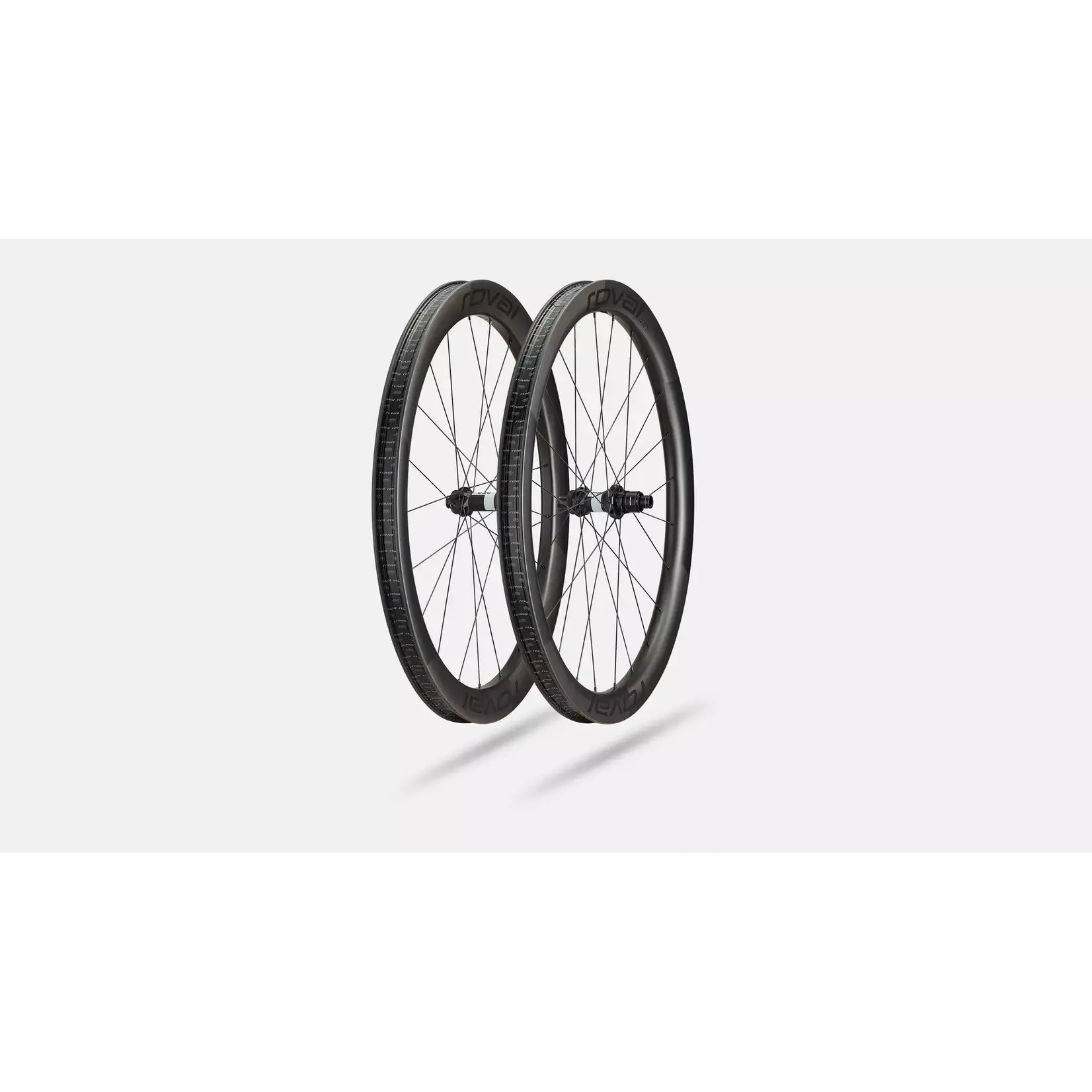

Terra Aero CL Carbon Clincher, 700c (CR2478)

Front Rim Dimensions

Depth: 50mm, External Width (at widest point): 38.5mm, Internal Width: 27mm, Bead Hook Width: 5.38mm

Rear Rim

Terra Aero CL Carbon Clincher, 700c (CR2477)

Rear Rim Dimensions

Depth: 45mm, External Width (at widest point): 38.4mm, Internal Width: 27mm, Bead Hook Width: 5.38mm

Rim Construction

Carbon Clincher Hooked

Wheel Size / ETRTO

622 × 27 (700c)

Hole Count

Front: 21H, Rear: 24H

Tubeless Compatibility

Yes

Insert Compatibility

Yes

Brake Compatibility

Disc (Centerlock)

Valve Stem Length

Roval Tubeless Valve, Alloy 70mm (Front) 60mm (Rear)

Front Hub

DT Swiss 350 Straight Pull, Center Lock, 12x100mm

Rear Hub

DT Swiss 350 Straight Pull, Center Lock, 12x142mm

Front Hub Bearing

DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)

Rear Hub Bearing

DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)

Rear Freehub Body

DT Swiss Ratchet (36T): Sram XD-R

Front Spokes

DT Swiss Competition Race Straight Pull, 2.0x1.6mm: 21qty, (DS: 260mm, NDS: 273mm)

Rear Spokes

DT Swiss Competition Race Straight Pull, 2.0x1.6mm: 24qty, (DS: 270mm, NDS: 274mm)

Front Lacing Pattern

Two-Cross / Radial (2:1), Not Tucked

Rear Lacing Pattern

One-Cross / Three-Cross (2:1), Not Tucked

Nipples

DT Swiss Hex Prolock Al 2.0x14mm

Approved Tire Widths

35mm-60mm (2.2")

Max Pressure

35mm – 70psi​, 36-45mm – 55psi​, 46-50mm – 45psi​, 51-60mm - 40psi

Tire Type

Clincher Tubeless and Clincher Tube Type

Tubeless Tape Width

30mm

Design Tire

Tracer TLR 45mm

Front Weight

770g (with valves and tape)

Rear Weight

838g (with valves and tape)

Wheelset Weight

1608g (with valves and tape)
