Front Rim

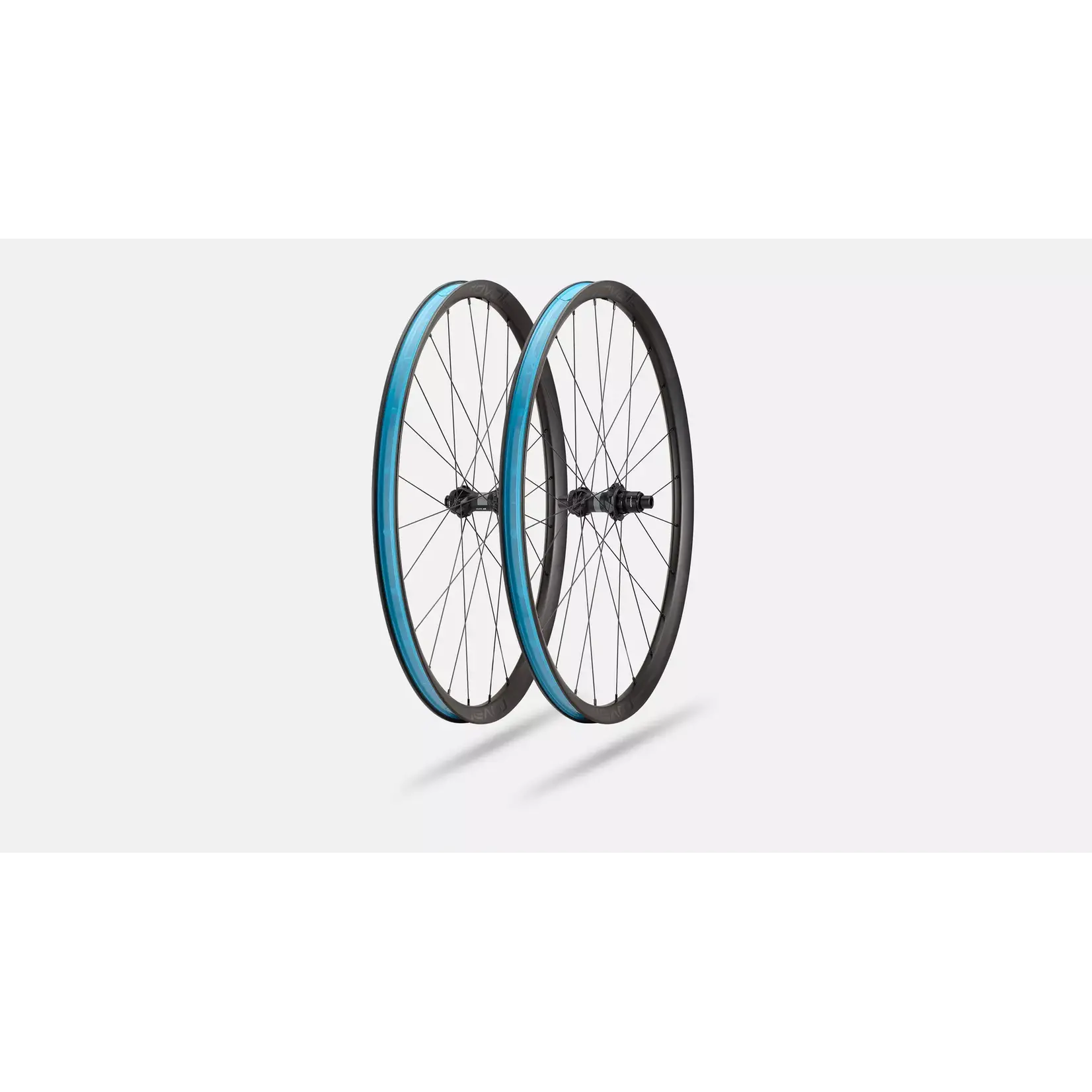

Terra C III Carbon Clincher, 700c (CR2479)

Front Rim Dimensions

Depth: 25.5mm, External Width (at widest point): 38mm, Internal Width: 27mm, Bead Hook Width: (4.9)mm

Rear Rim

Terra C III Carbon Clincher, 700c (CR2479)

Rear Rim Dimensions

Depth: 25.5mm, External Width (at widest point): 38mm, Internal Width: 27mm, Bead Hook Width: (4.9)mm

Rim Construction

Carbon Clincher Hooked

Wheel Size / ETRTO

622 x 27 (700c)

Hole Count

Front: 24H, Rear: 24H

Tubeless Compatibility

Yes

Insert Compatibility

Yes

Brake Compatibility

Disc (Centerlock)

Valve Stem Length

Roval Tubeless Vlave, Alloy 35mm

Front Hub

DT Swiss 370 Straight Pull, Center Lock, 12x100mm

Rear Hub

DT Swiss 370 Straight Pull, Center Lock, 12x142mm

Front Hub Bearing

DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)

Rear Hub Bearing

DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)

Rear Freehub Body

DT Swiss Ratchet LN (18T): Sram XD-R

Front Spokes

Sapim D-Light Straightpull, 2.0x1.65mm: 24qty, (DS: 292mm, NDS: 292mm)

Rear Spokes

Sapim D-Light Straightpull, 2.0x1.65mm: 24qty, (DS: 289mm, NDS: 293mm)

Front Lacing Pattern

Two-Cross / Radial (2:1), Not Tucked

Rear Lacing Pattern

One-Cross / Three-Cross (2:1), Not Tucked

Nipples

Sapim Secure Lock Double Square Alloy Blk, 2.0 x 18mm, 16cNm

Approved Tire Widths

35mm-60mm

Max Pressure

35mm – 70psi​, 36-45mm – 55psi​, 46-50mm – 45psi​, 51-60mm - 40psi​

Tire Type

Clincher Tubeless and Clincher Tube Type

Tubeless Tape Width

29mm

Design Tire

Pathfinder TLR Fast Gravel Tire 45mm

Front Weight

745g (with valves and tape)

Rear Weight

849g (with valves and tape)

Wheelset Weight

1,594g (with valves and tape)
